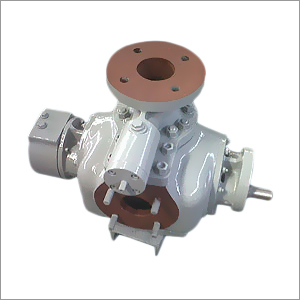

Twin Screw Pump

Twin Screw Pump

Product Details:

  • Theory Axial Flow Pump
  • Material Single Screw Pumps
  • Structure Single Stage Pump
  • Power Hydraulic Watt (w)
  • Supply Ability : 10 Piece Per Month
10000-5000000 INR/Unit
X

Price And Quantity

  • 1 Piece
  • 10000-5000000 INR/Unit

Product Specifications

  • Axial Flow Pump
  • Hydraulic Watt (w)
  • Single Stage Pump
  • Single Screw Pumps

Trade Information

  • 10 Piece Per Month
  • 1 Week
  • All India

Product Description

Over the years, we have emerged as one of the prominent manufacturers and exporters of an excellent range of Twin Screw Pump. These are self-priming, double ended positive displacement pumps, integrated with external timing gears and bearings. These pumps provide complete axial balancing of the rotating elements. It also eliminates all metal-to-metal contact within the pump. These Twin Screw Pump are ideal for bitumen, seawater, lime, acid, molasses, caustic solution or hydrocarbon.

UT Pumps & Systems Pvt. Ltd is acknowledged as one of the leading Twin Screw Pumps exporter and manufacturers in India. The pumps are designed & developed by our experienced team of professionals who use only optimum grade raw materials. Our whole array of Twin Screw Pumps is provided with replaceable liners & varied sealing arrangement options. Known for the excellent features such as extremely good suction capability, low maintenance cost and compact design, the products are very reliable. Our esteem customers can avail these in heavy duty models at the industry leading prices.

Twin Screw Pump Principle Operation


Twin Screw Pump consists a set of shafts - one driving and the other one is driven with two screws that are mounted & keyed onto each shaft. Liquid entering the pump separated into 2 parts, each part goes to the outer end of screws. When the screws start rotating, cavities form between the individual screw. And, these hold particular volume of fluid. The amount of fluid that entered the pump and was channeled to the left, then moves to the center from left. On the other hand, the liquid potion that was diverted to the right also moves from right to center. At the center point, these two flow paths rejoin & exit the pump through discharge flange. By means of timing gears, the drive to driven screw is transmitted. The Twin Screw Pumps are ideal for dry running applications.

Twin Screw Pump Feature and Advantages

  • Separate Screw & Shaft Assembly
  • Combination of materials possible for shafts and screw
  • Independent construction material for Screw & Shaft respectively
  • Compact Design
  • Replacement needed for damaged part only
  • Unmatched suction capability
  • Varied combinations of materials available
  • Change in the performance characteristics is possible by changing screws only
  • Modification in pump design can be done from long shaft to small shaft, and vice-versa
  • Partial/ full heating jacket in various designs
  • Installed with Replaceable Liners
  • Different sealing arrangements
  • Low NPSH requirement
  • Less maintenance cost
  • Casing available in various cast as well as fabricated designs.
Twin Screw Pump Specifications:
  • Max Power : 40 Bars
  • Max Capacity : 485 m³/HR
  • Max Temperature : 300°C

Technical specification


Size

Capacity Flow (m3/Hr)

Pumping Pressure in (bars)

2

9

25

3

17.4

30

4

40

40

5

67.5

40

6

120

40

7

285

40

7T

455

50




UT PUMPS & SYSTEMS PVT. LTD.
